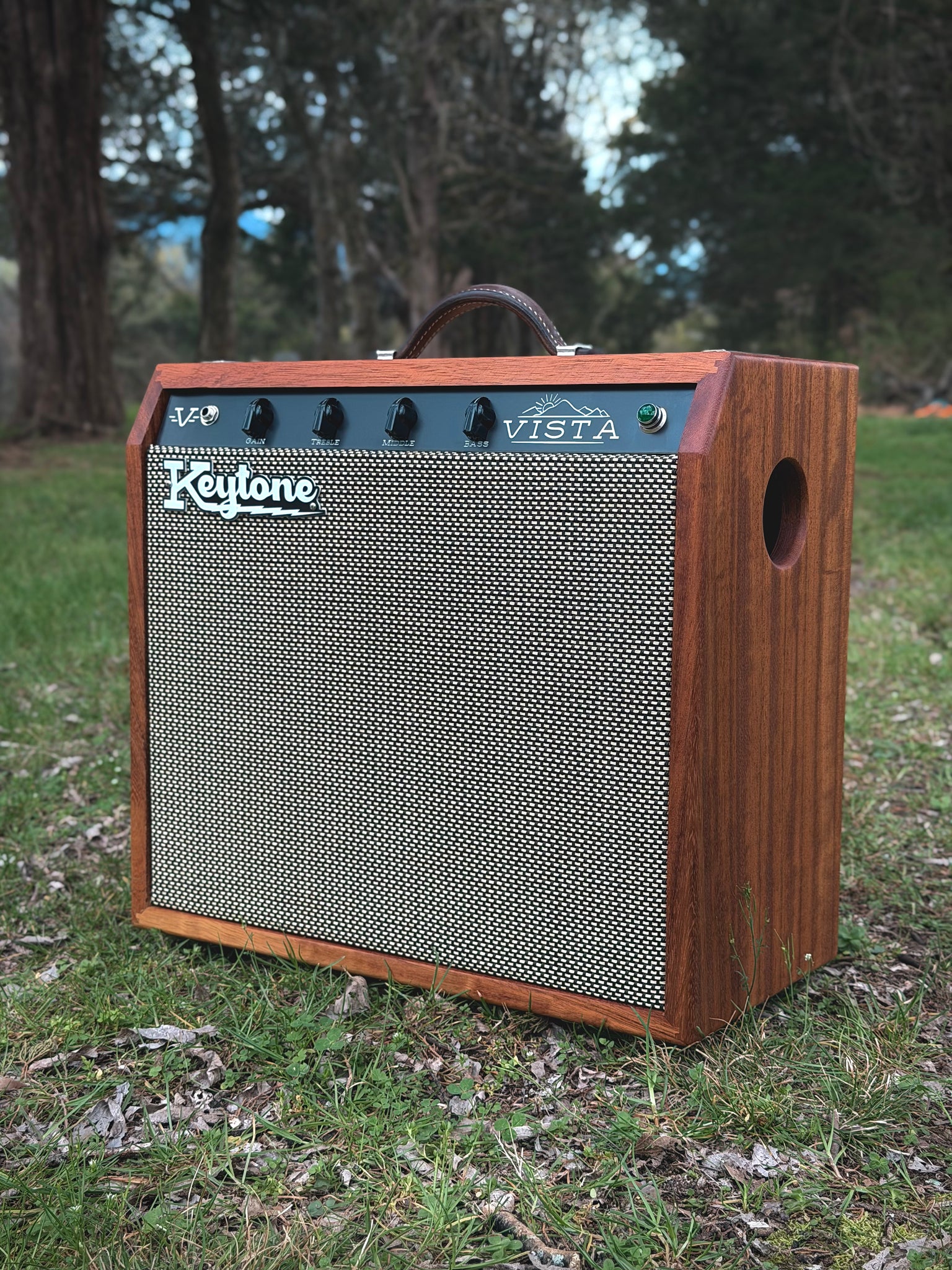

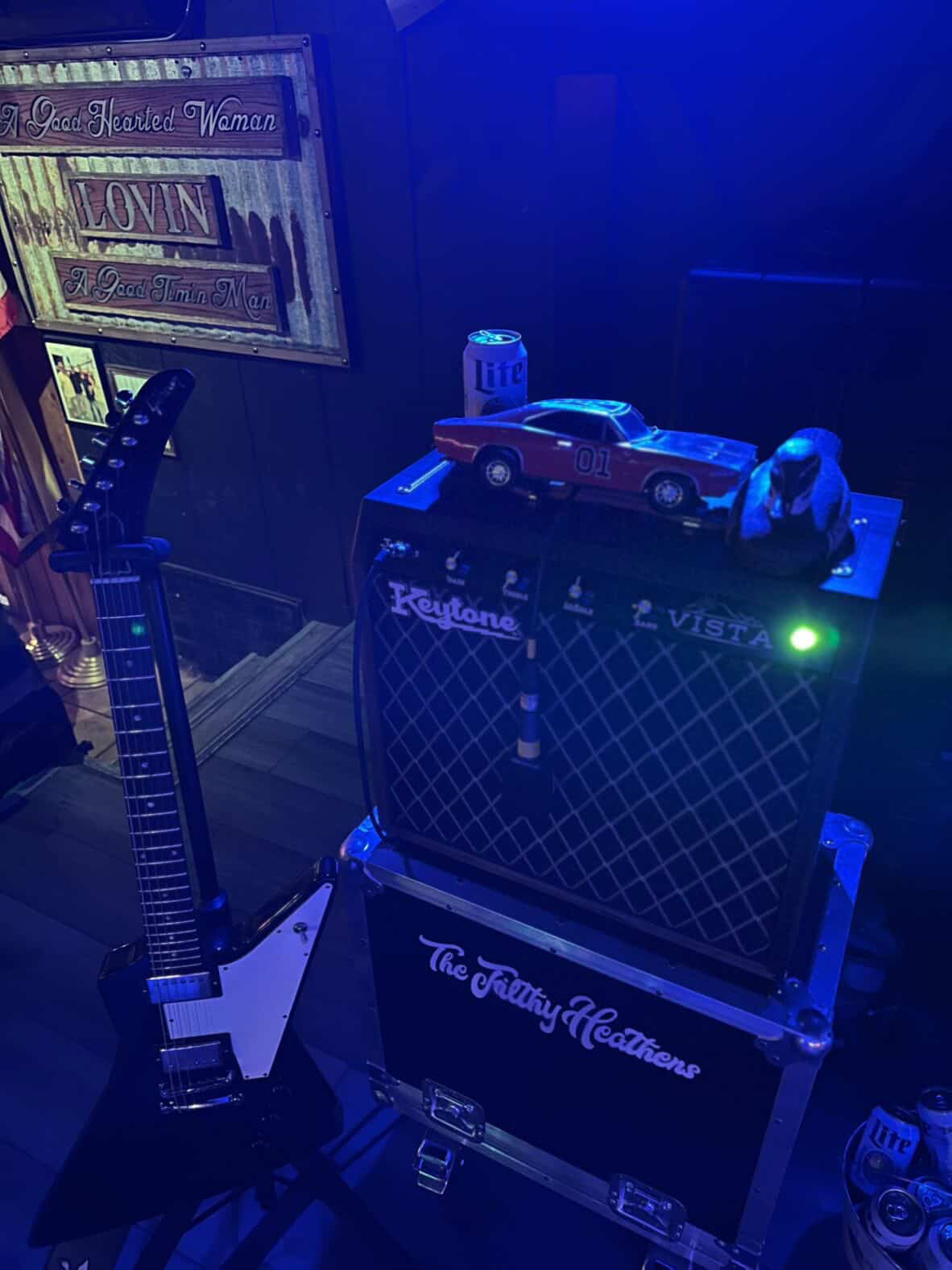

The Vista has been a couple years in the making. I've taken the prototype on the road for dozens of gigs from small restaurant style shows to large outdoor festivals. This circuit has been dialed in to just work. It sits right where you'd want it to with and band whether you're playing single coils or humbuckers. The design is a blend of 60s blackface and 50s tweed amp ideas. Its preamp is simple. Frankly, the whole amp is simple, but each part work together to produce something complex. The natural overdrive & cathode biased power amp compression when pushed are just right, yet the design retains enough headroom to be a solid pedal platform. Here are the specs & options:

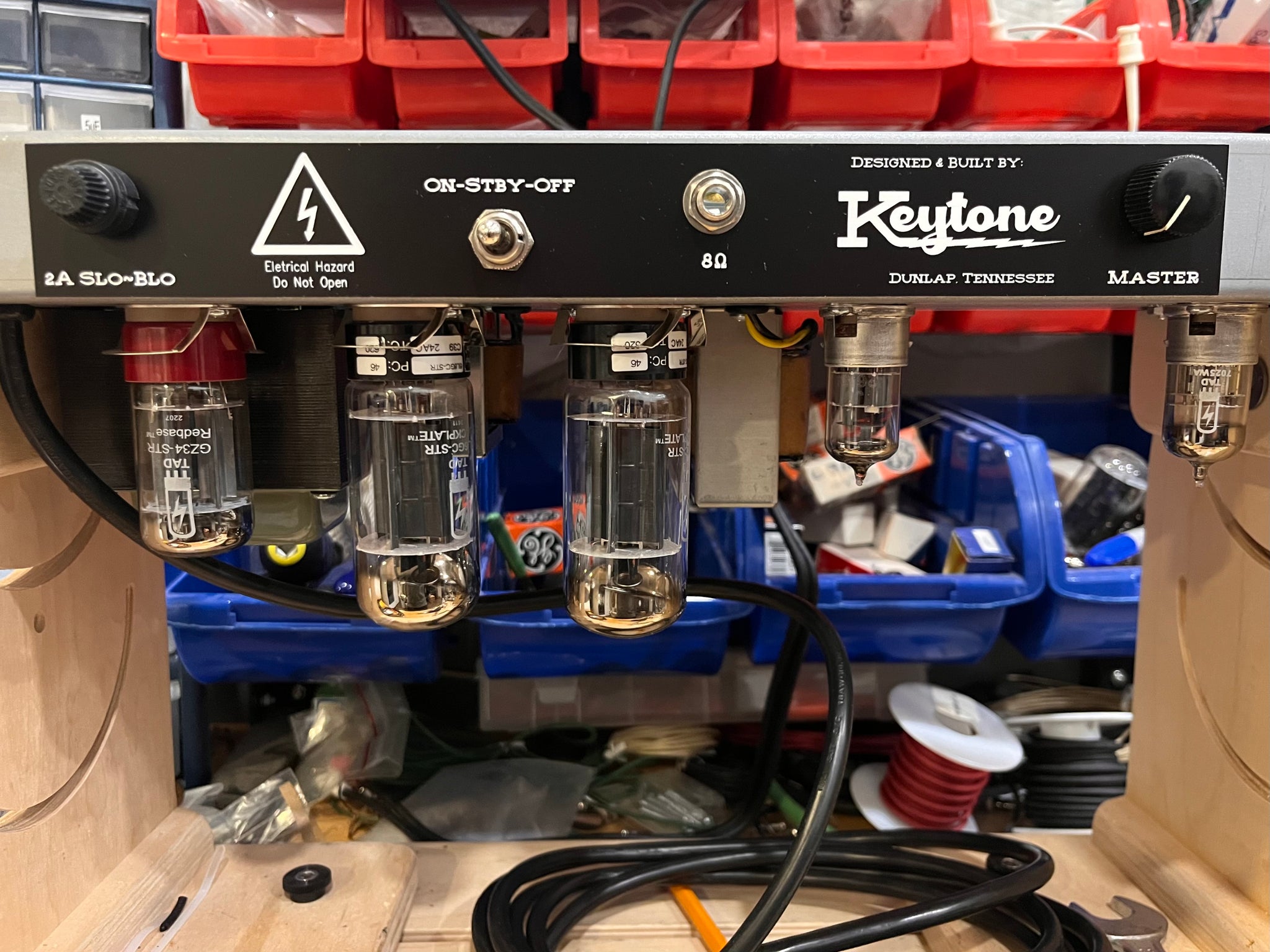

30W cathode biased 6L6 pair

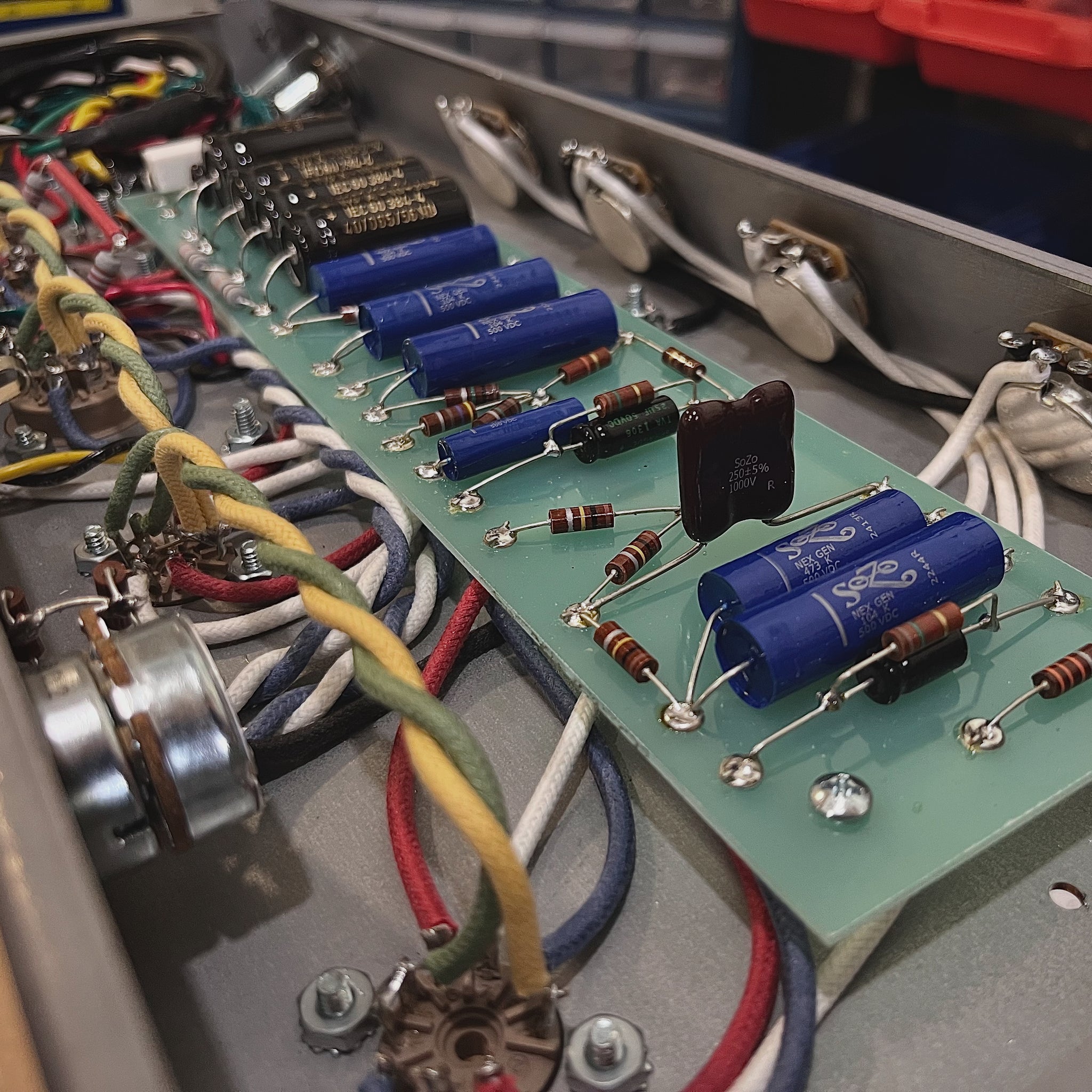

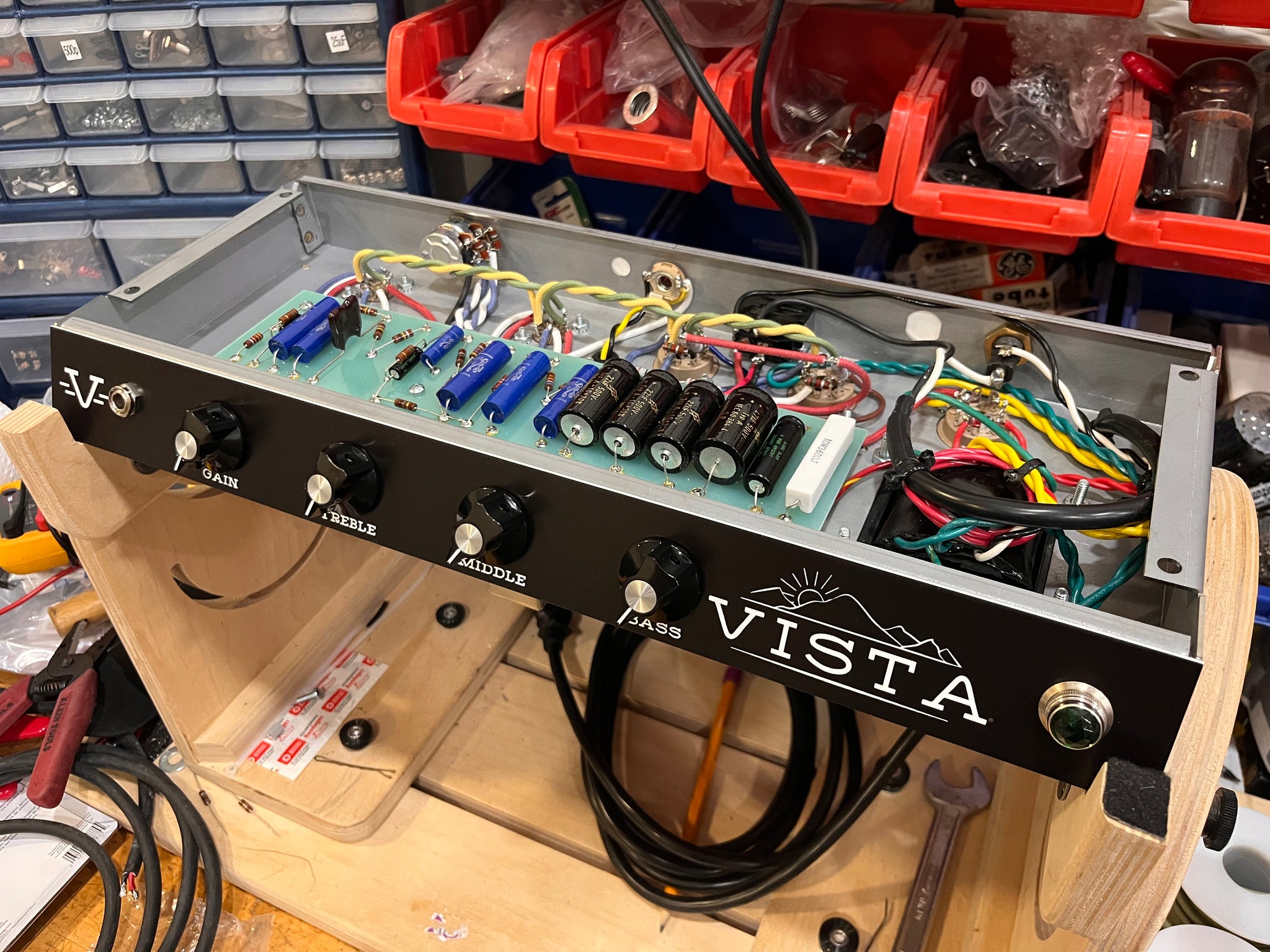

Blackface non-reverb style preamp: 12AX7 & 12AT7
GZ34 rectifier

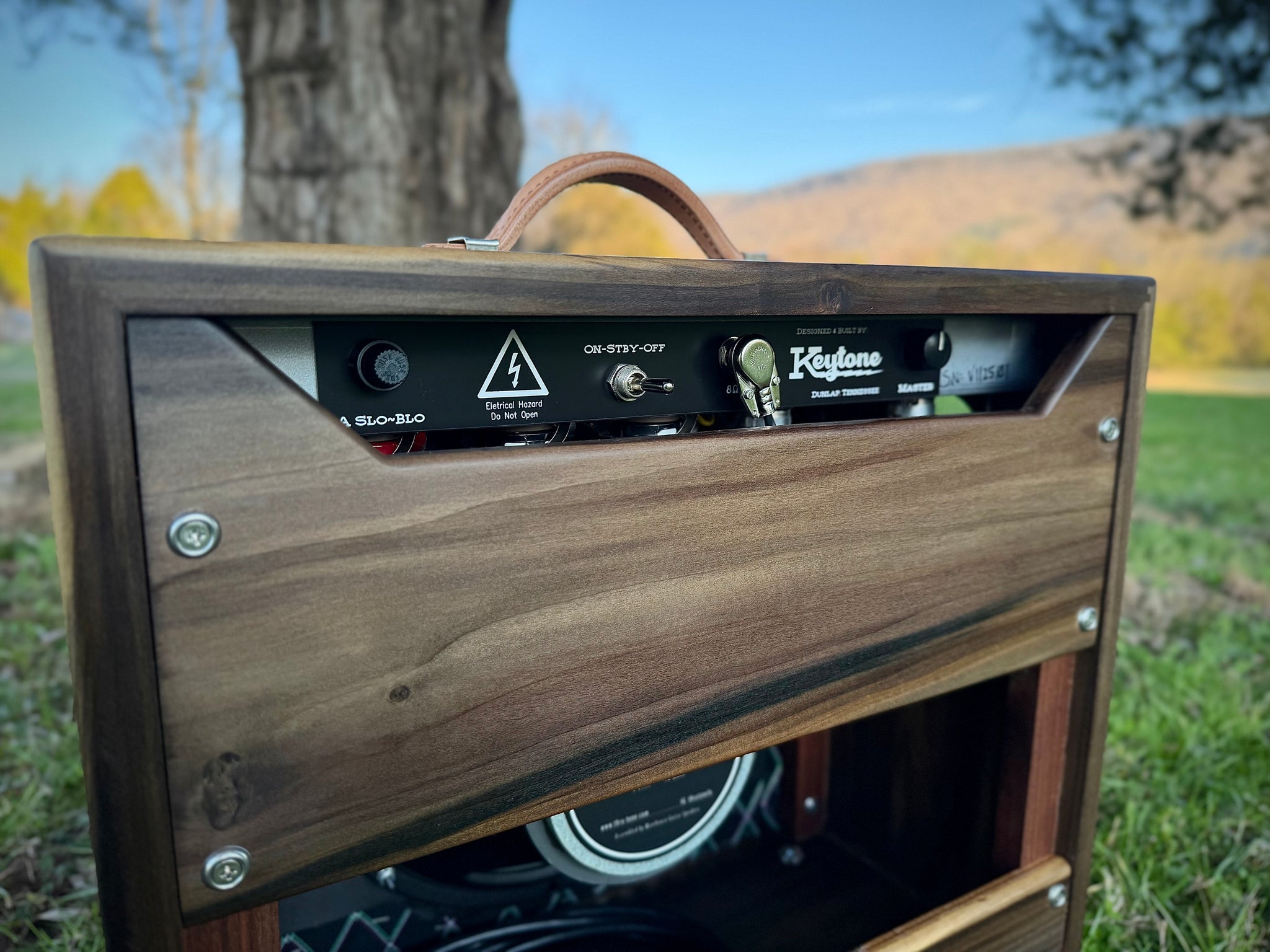

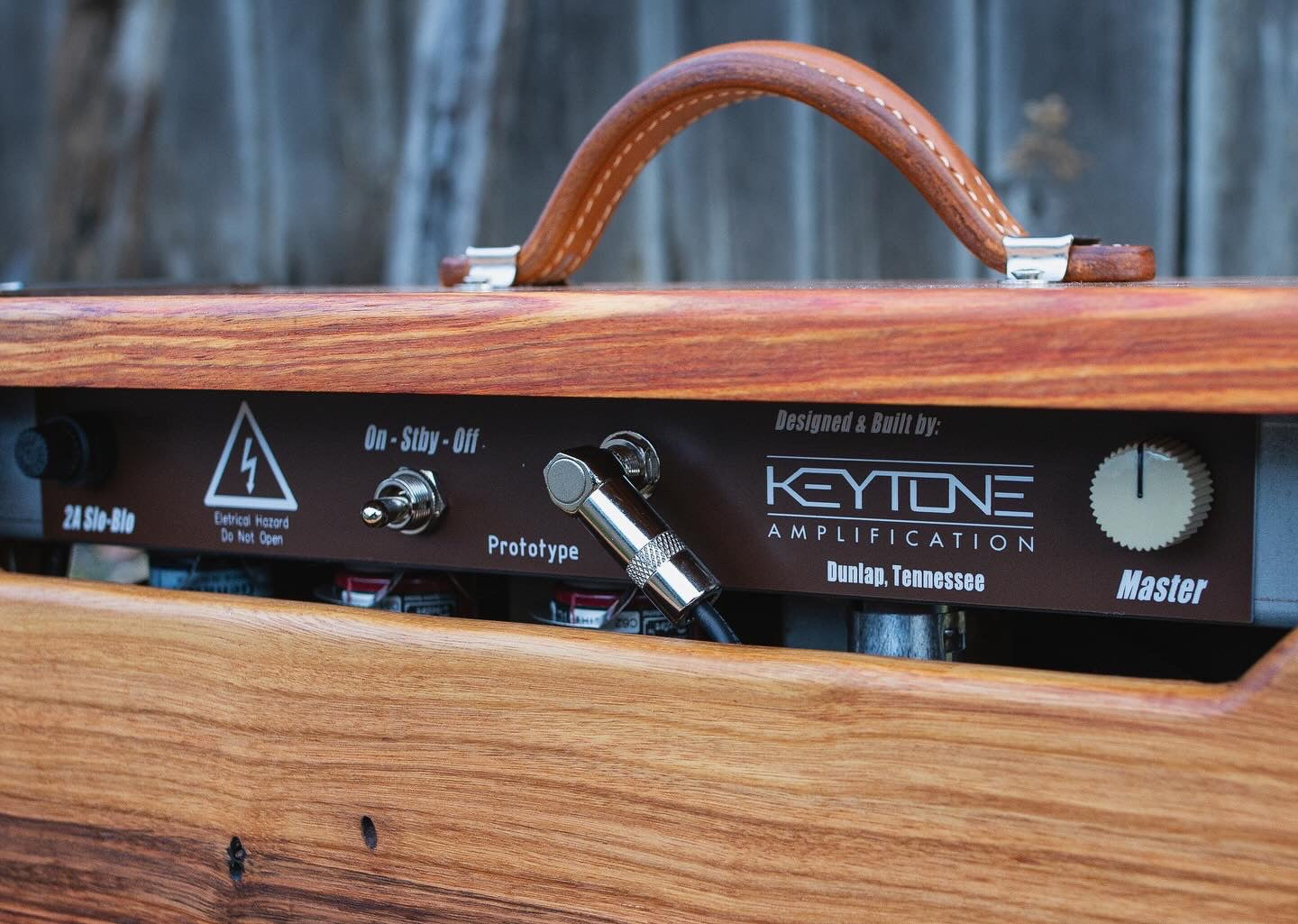

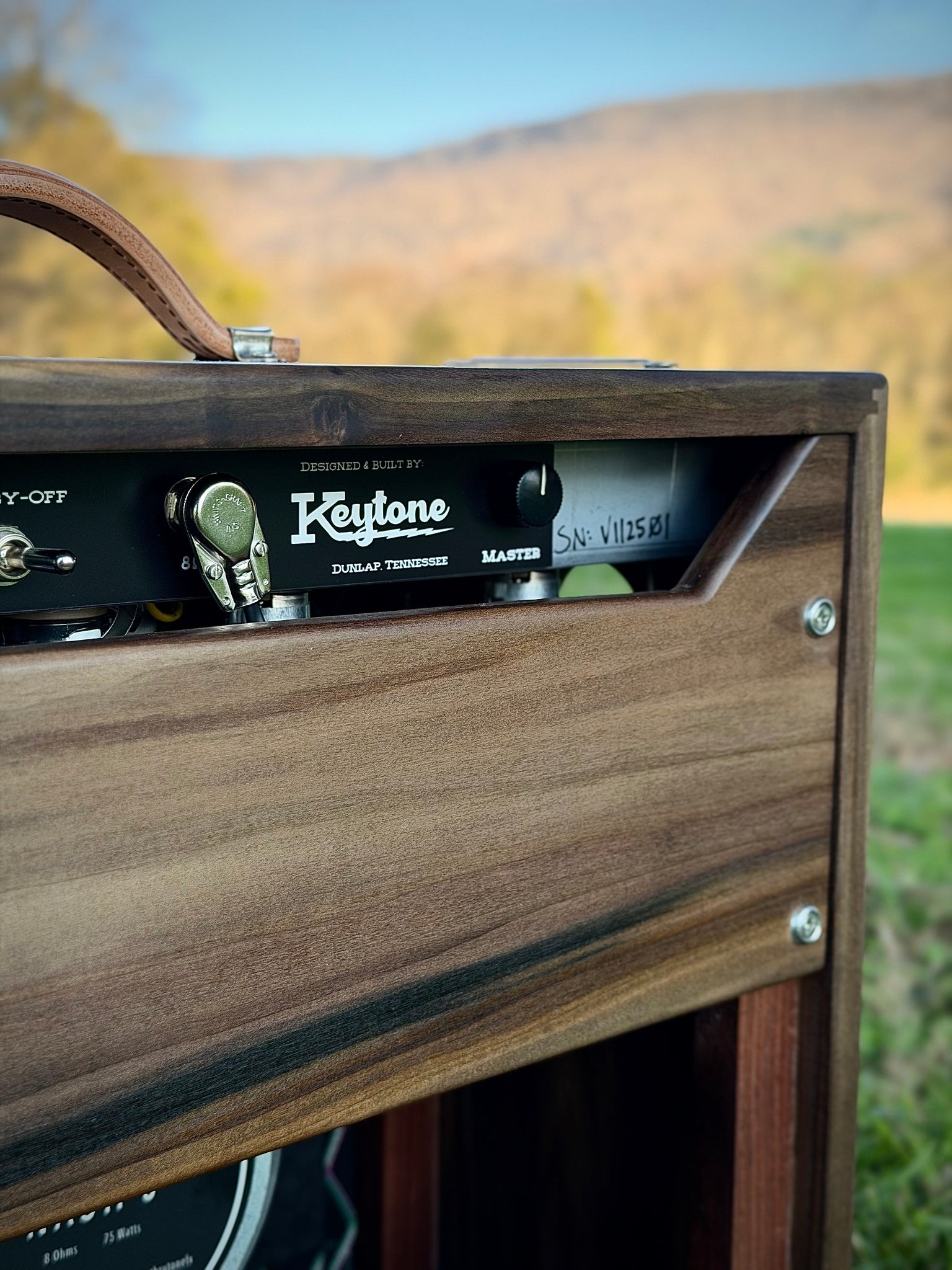

Post phase-inverter Master Volume (located on rear of chassis)
No Bright Cap
8 Ohm Speaker Out
19" W x 17" H x 9.5" D
35 - 40lbs range depending on wood type and speaker

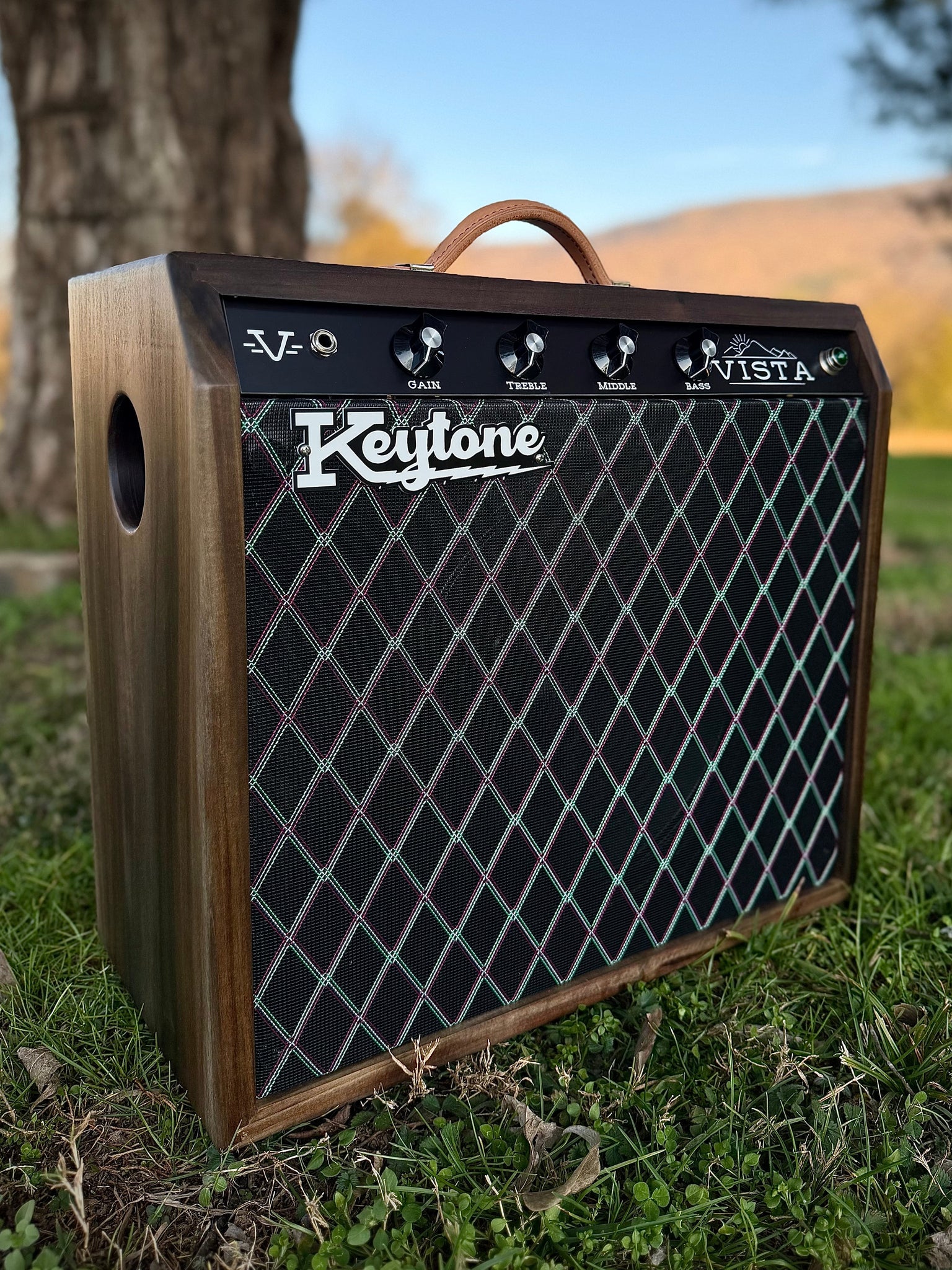

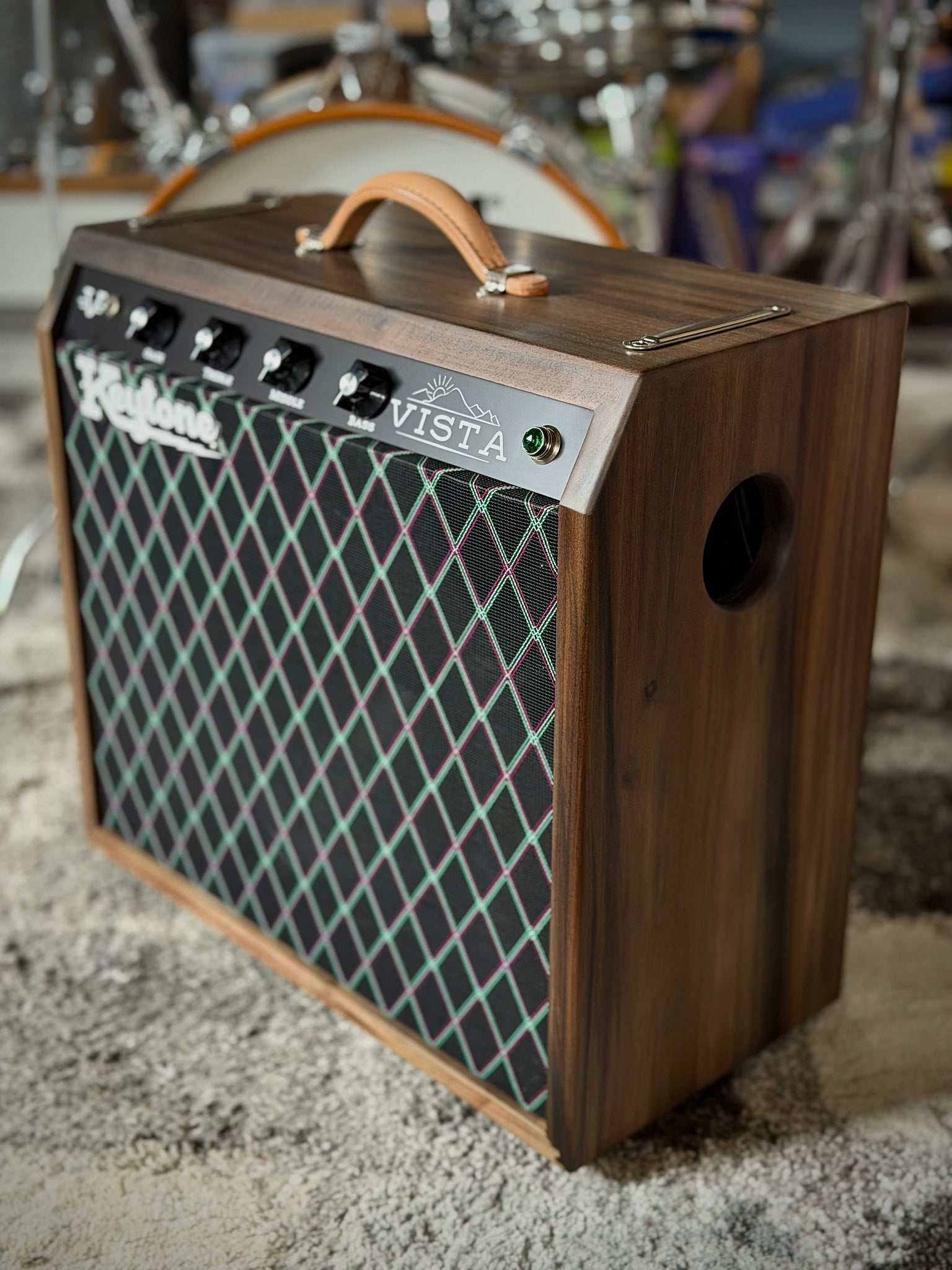

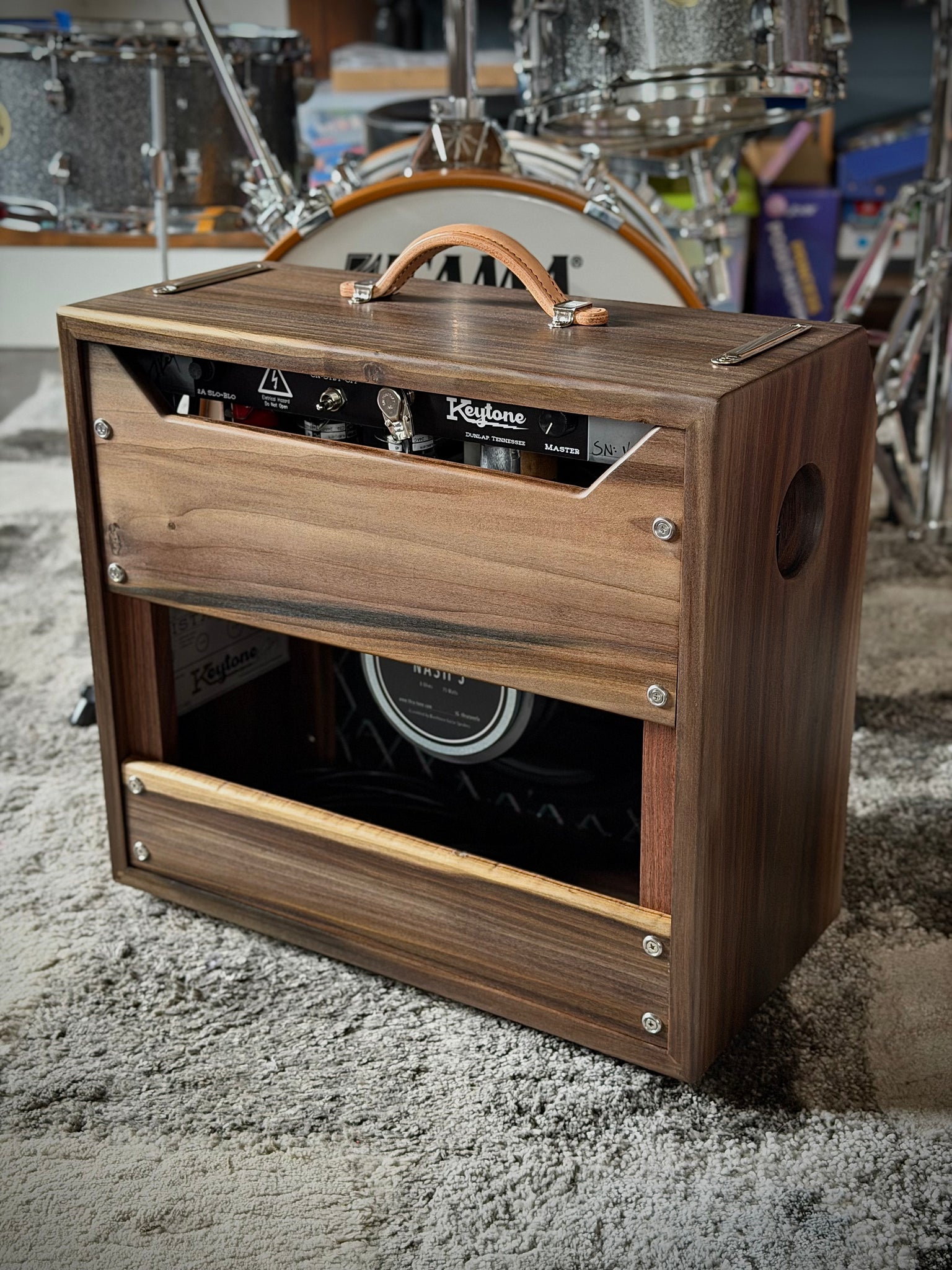

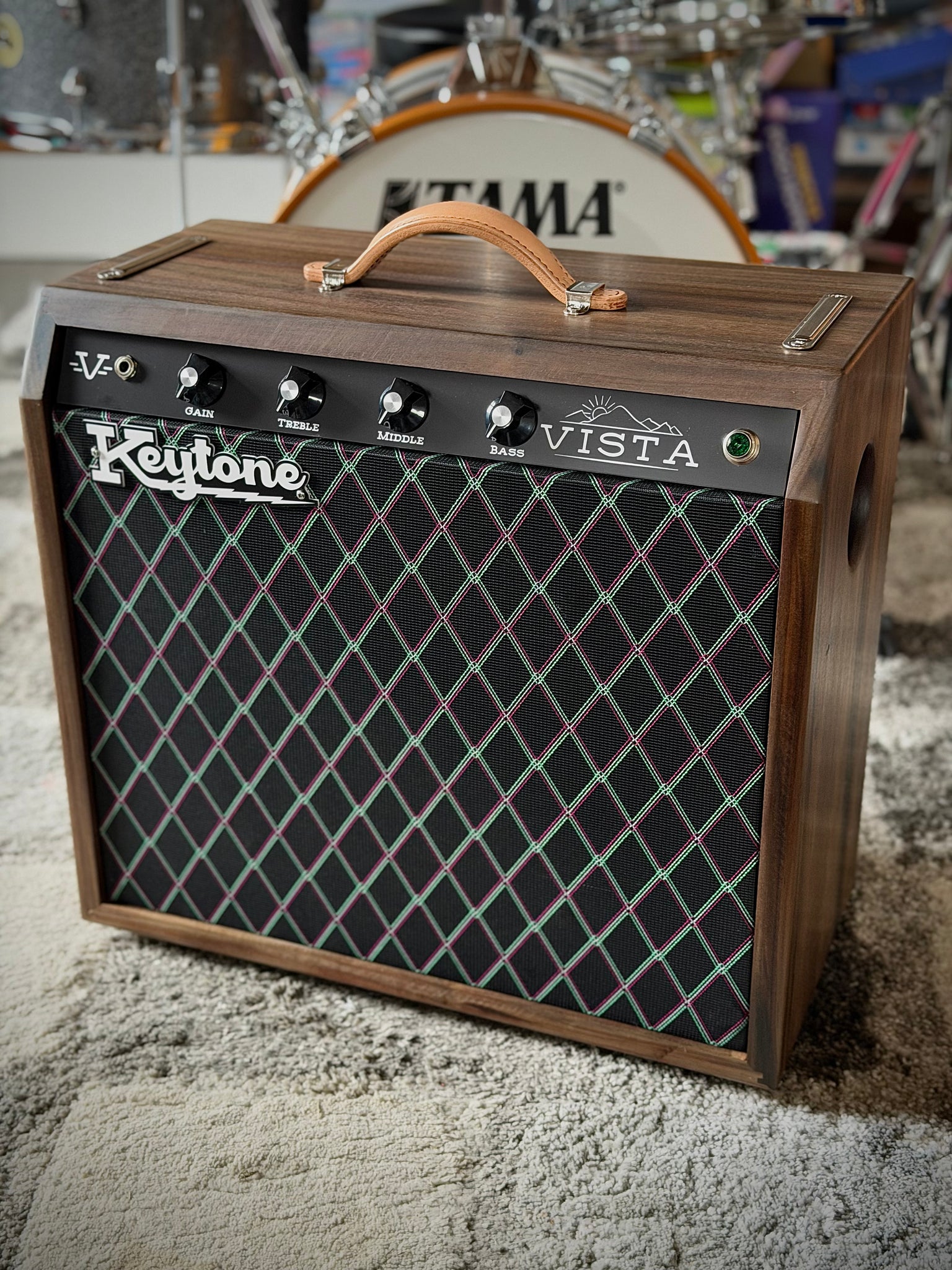

Available as a 1x12 combo or head

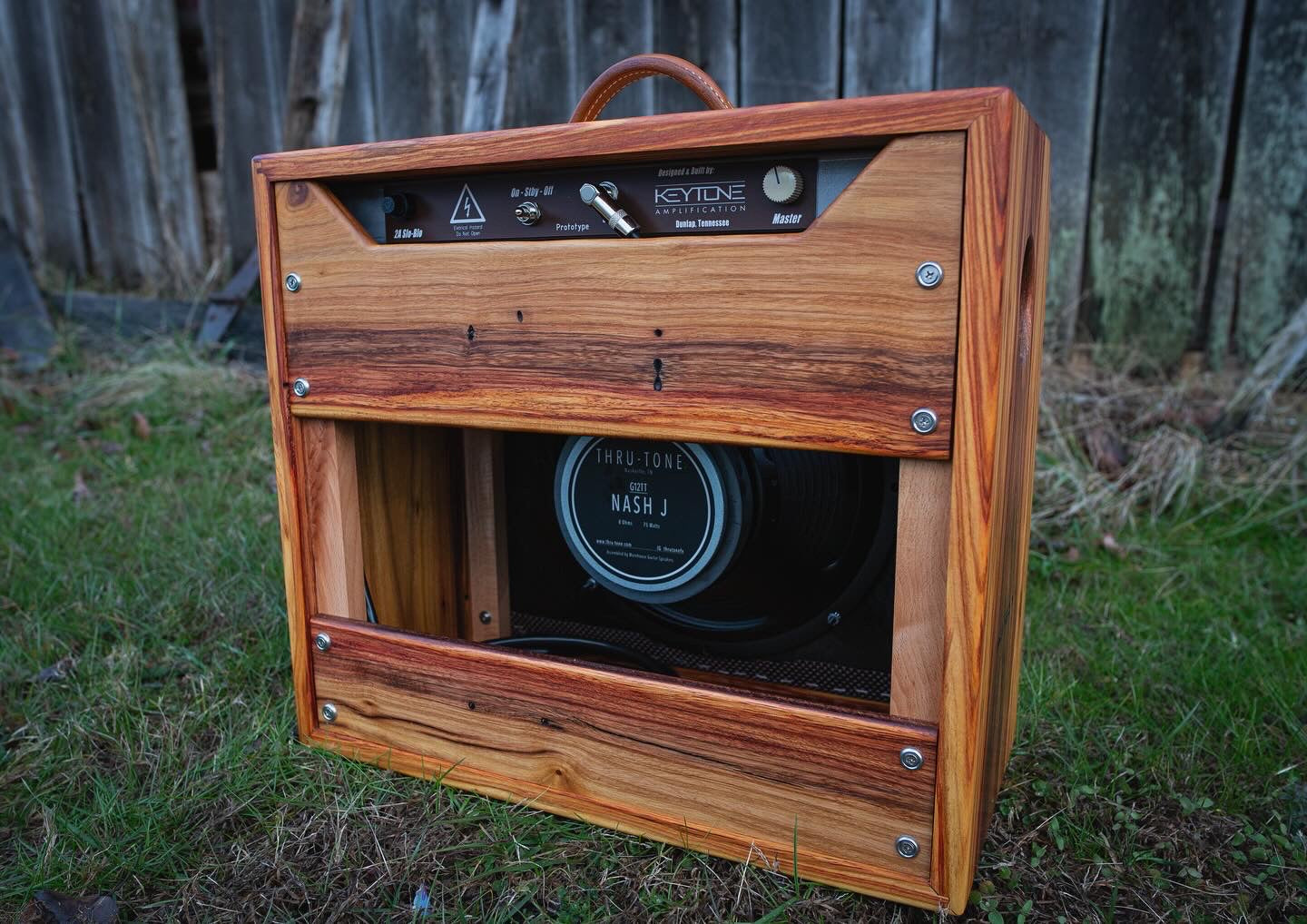

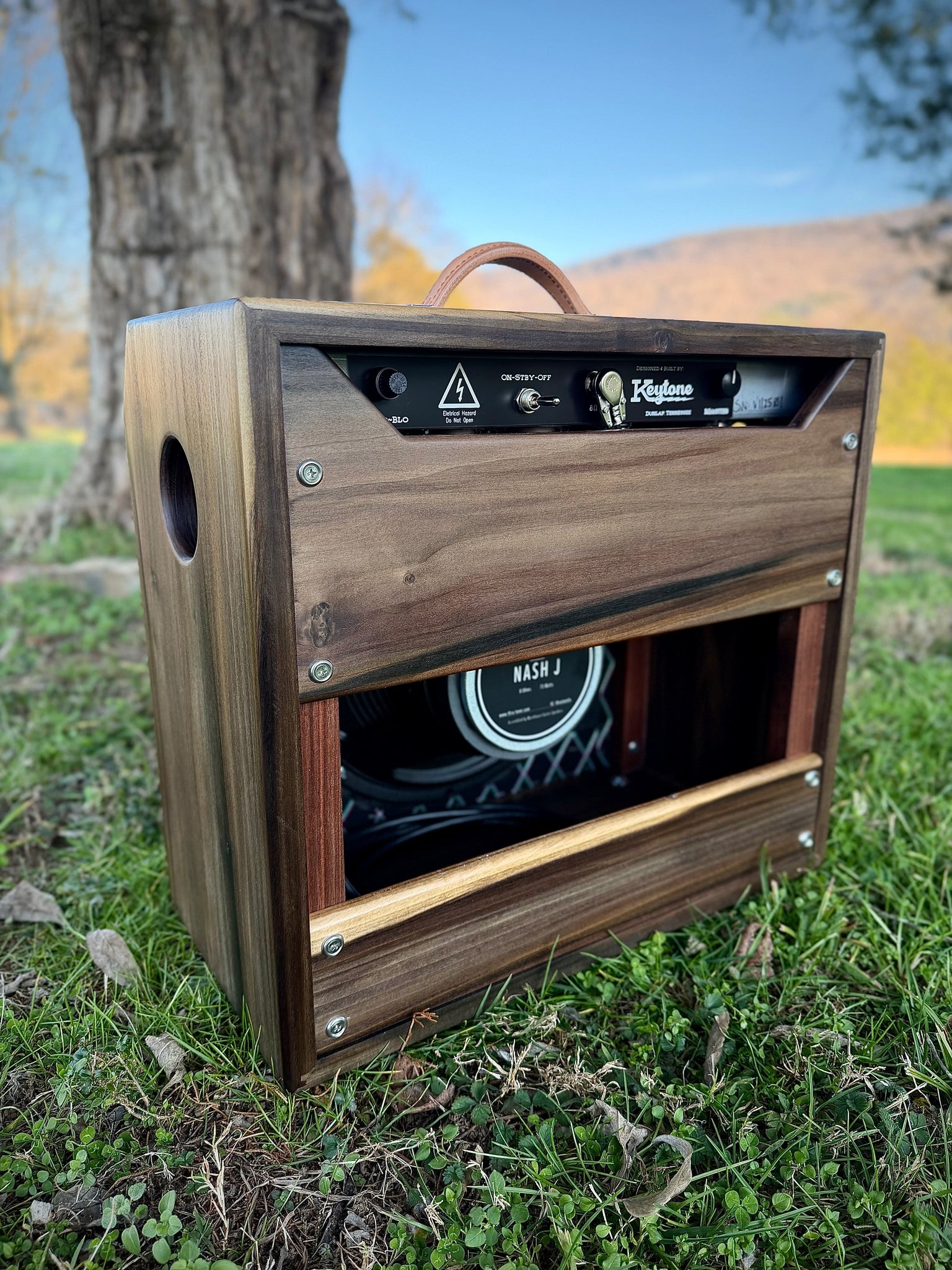

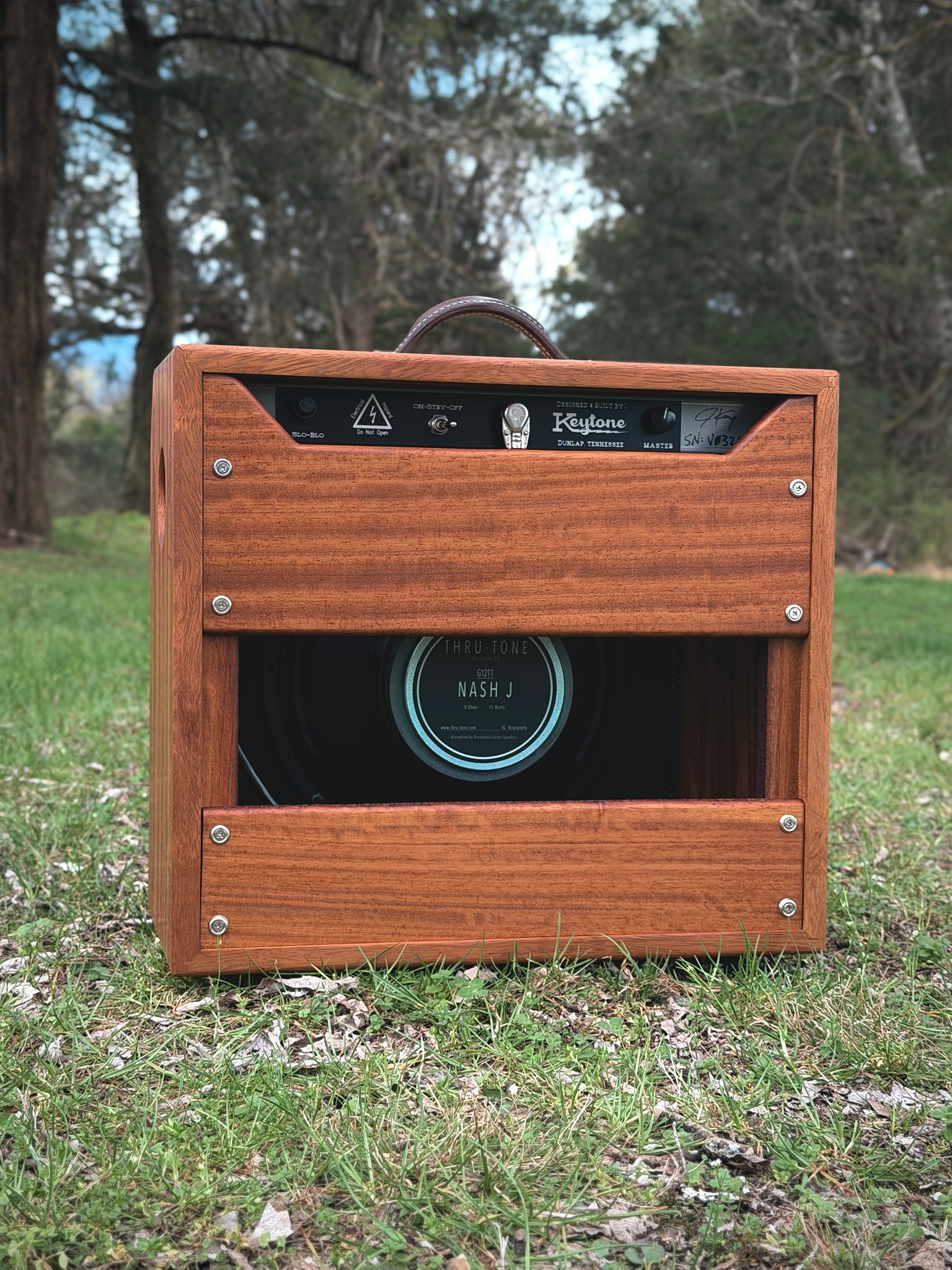

Thrutone Nash J is the standard speaker
AlNiCo speaker (ie: Celestion Gold) $150 upcharge
Some wood choices for cabinet will be an upcharge - will be discussed before build begins
